2021
LumiSource Sponsored Project
Awarded Third Place Winner

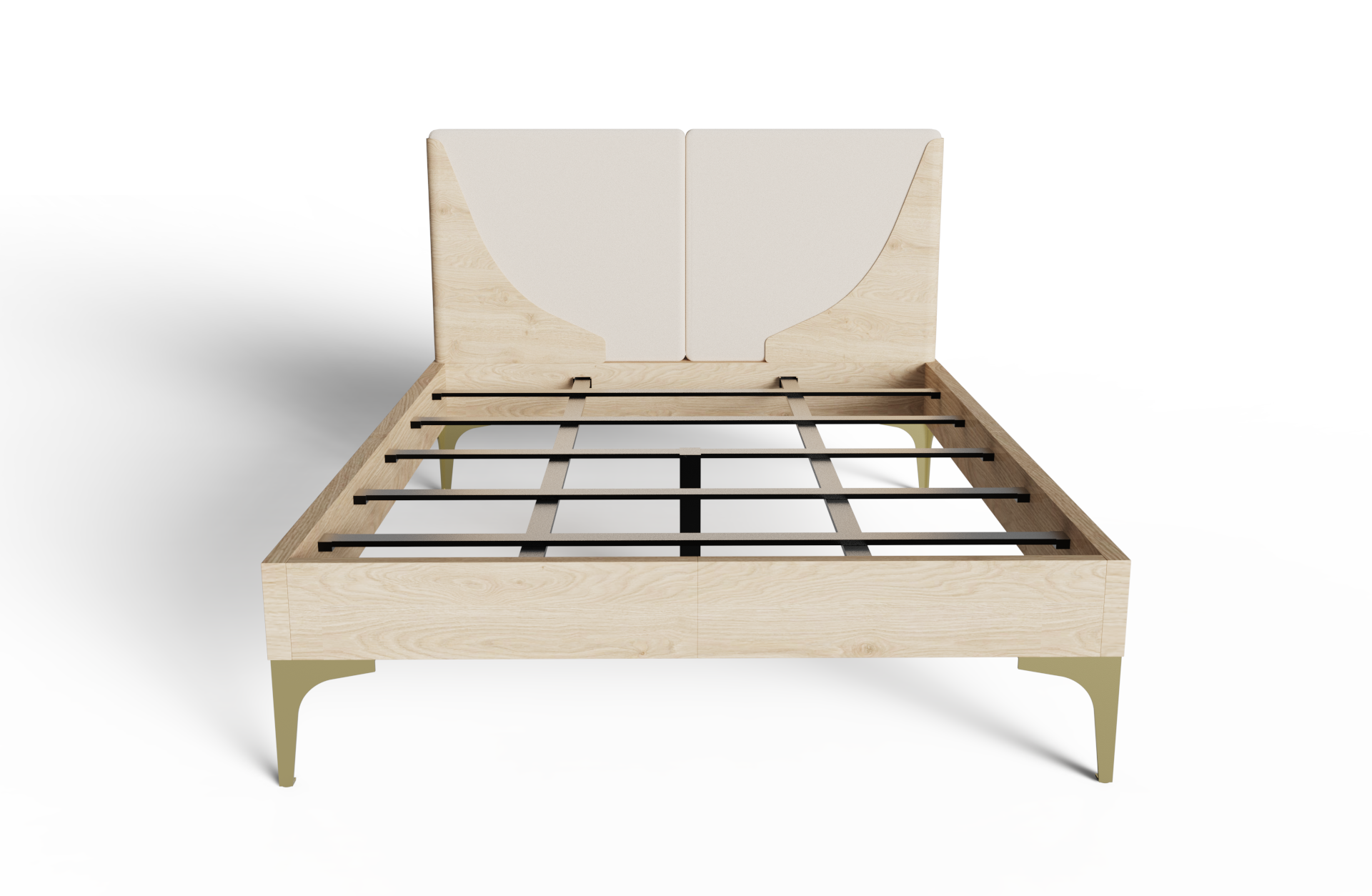

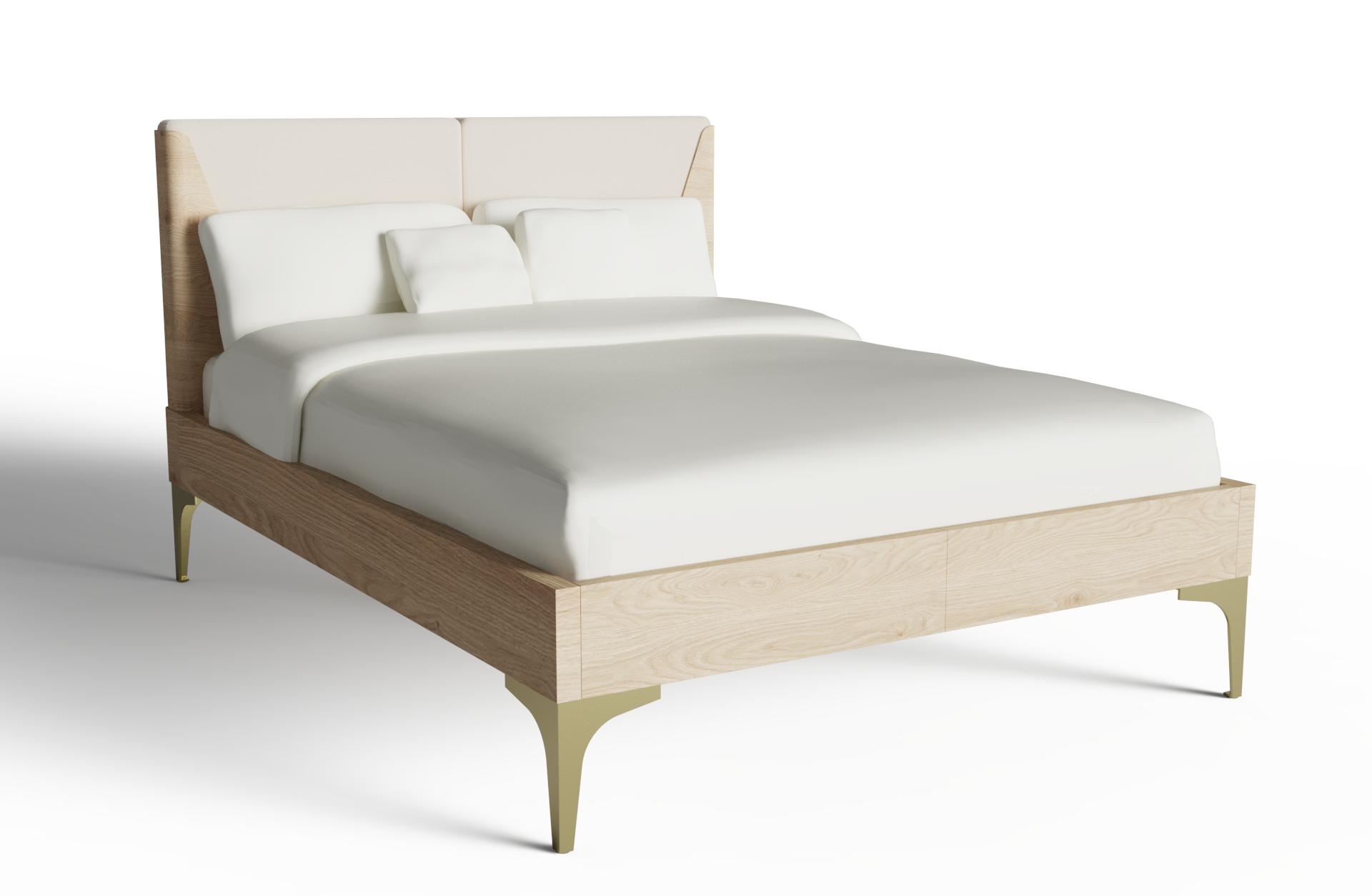

Mixo is a queen-size knock-down bed set that seamlessly combines a blend of modern aesthetics and timeless appeal. This set includes a headboard and mattress frame with four sturdy legs. Its user-friendly design ensures a straightforward assembly process, providing ease of assembly and eliminating any hassles during setup. Furthermore, when disassembled, the components of the frame and headboard snugly interlock within a suitably sized box, resulting in substantial reductions in shipping costs.

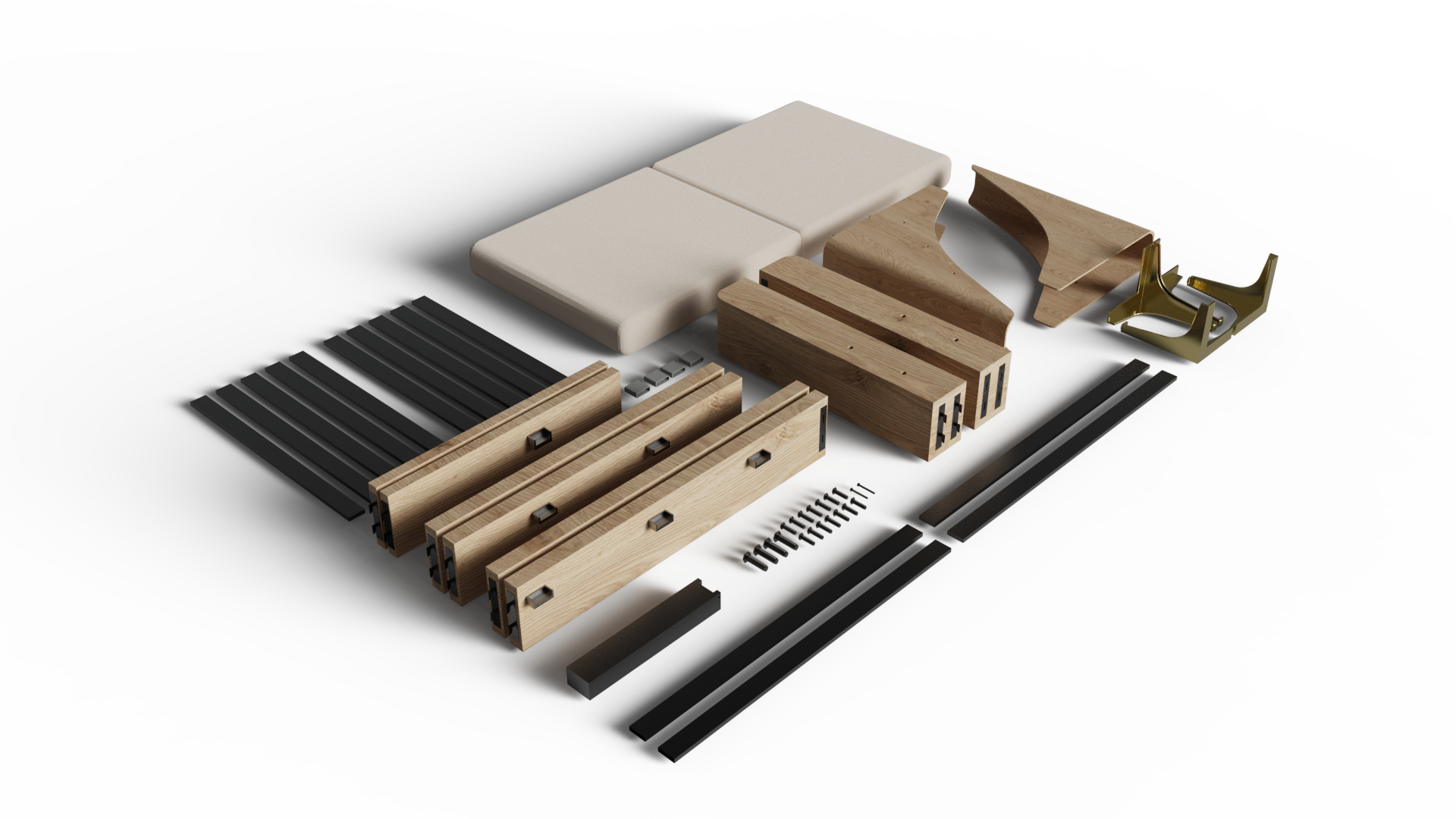

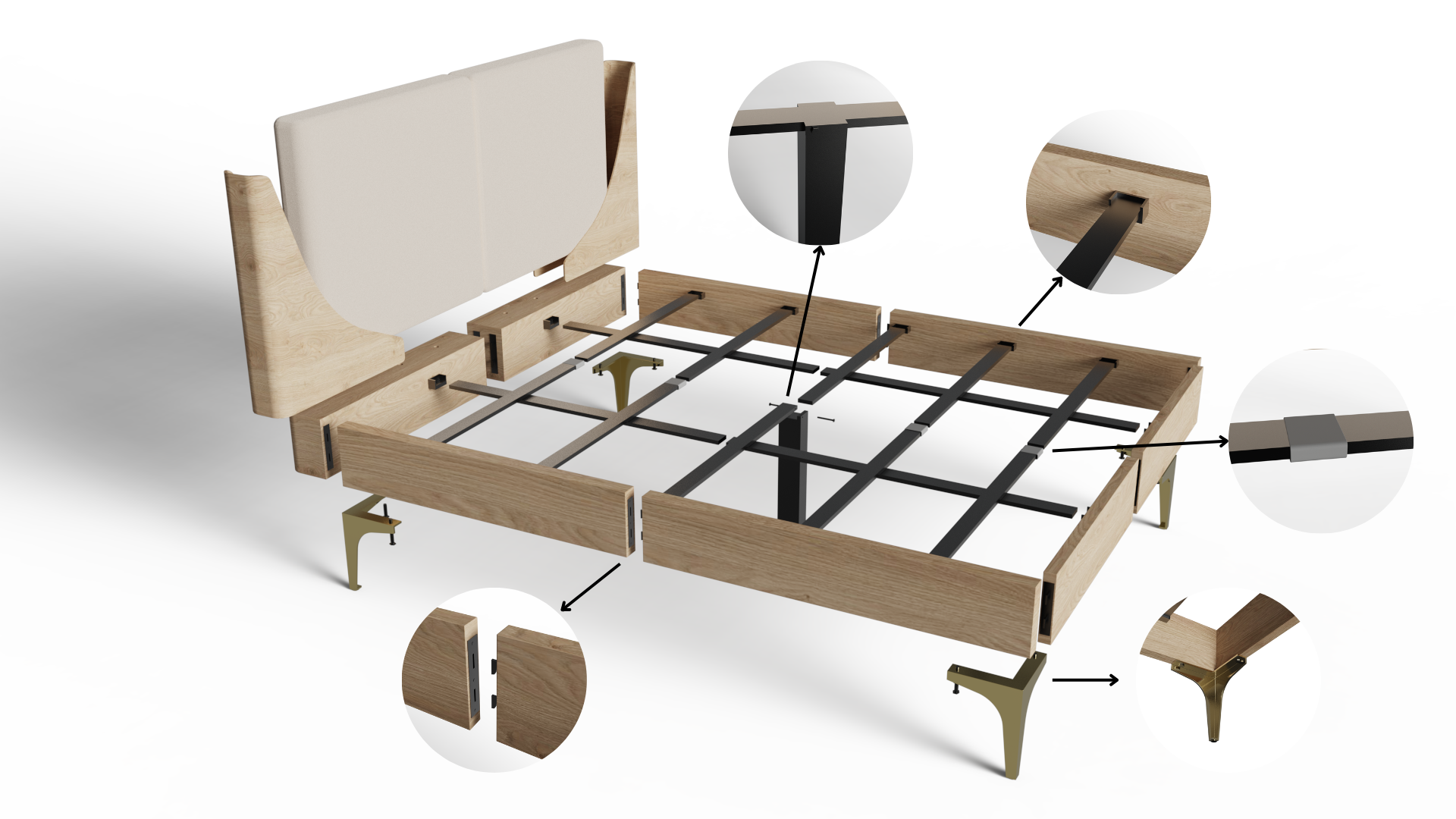

Exploded view of parts:
Parts:
• x1 off-white headboard + x2 wooden corner panels
• x4 wooden frame side rails
• x2 wooden frame front rails
• x2 wooden frame back rails
• x4 gold brass legs
• x14 metal slats (10 horizontal + 4 vertical)
• x1 metal center support
• screws + silicone connectors

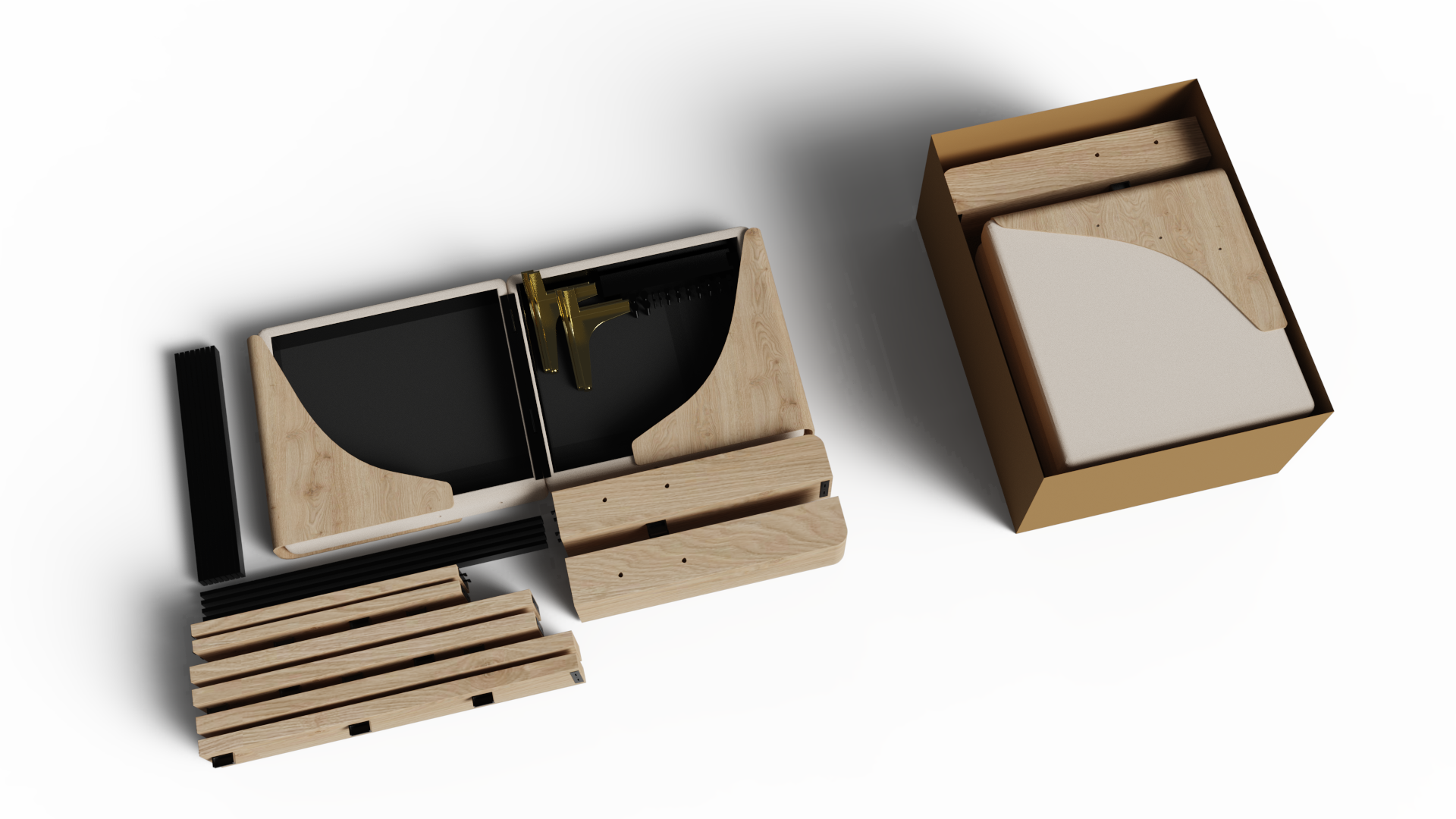

Packaging and Shipping
For shipping, some parts will be stored inside the hollowed side of the headboard to save space. This headboard will be folded in half and arranged inside a shipping box with the remaining parts.
